Waterproof outdoor POE Extender 10/100M or 1000Mbps 1-IN 4-OUT,100m
POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max,
IEEE802.3AF/AT/BT, for Cameras wireless AP
Product Description:
The WBT14G-A Gigabit Ethernet PoE Extender, which provides
1xGigabit IEEE802.3af/at (PoE/90w) power supply Port input, 1
Gigabit IEEE802.3af/at (PoE/60w)+3 Gigabit IEEE802.3af/at (PoE)
power supply ports output, The maximum power of the whole machine
is 90W. It has IP66 waterproof rating and one click VLAN function.
Features:
- With one IEEE802.3af/at (PoE/90w) power input port
- with one IEEE802.3af/at (PoE/60w) power supply port output
- with three IEEE802.3af/at (PoE) power ports output
- Has network and POE relay extension function
- Has IP66 waterproof rating
- It has one click VLAN function
Technical Parameters:
| Network Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3AF/AT/BT |
| Port | 4*10/100/1000Mbps RJ45 power supply output port 1*10/100/1000Mbps RJ45 receiving input port |
| POE Power | The whole power is 90W, the first output port has a maximum output
power of 60W, and the 2nd-4th output ports have a maximum output
power of 30W |
| POE Connection | POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8- POE output power supply core: 1/2+, 3/6- 100M Transmission |
| Performance | Store and forward MAC address table 2k Switching capacity 10Gbps |
| Forwarding Rate | 10BASE-T:14880PPS/port 100BASE-tx:148800pps/port 1000BASE-tx:1488000pps/port |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning
and aging IEEE802.3X Full-duplex and backpressure for half-duplex
mode |
| Environment | Operating Temperature:-10℃--55℃ |
| Power | Input:DC44-57V,90W;Output:DC44-57V, 85W |
| Weight &Size | 180g, 98mm×148mm×34mm(L×W×H) |
Packing and Shipping:
UTOPTEK's POE Repeater are packaged in a foam boxes for protection
during shipping. The box is then placed inside a larger shipping
box with adequate packing materials to prevent damage during
shipping and handling. All shipping boxes are labeled with the
product name, Model number, and can be customized customer's Logo
too.
The product is shipped via a reliable courier service such as
FedEx, UPS, or DHL. Tracking numbers are provided to customers once
the product has been shipped.

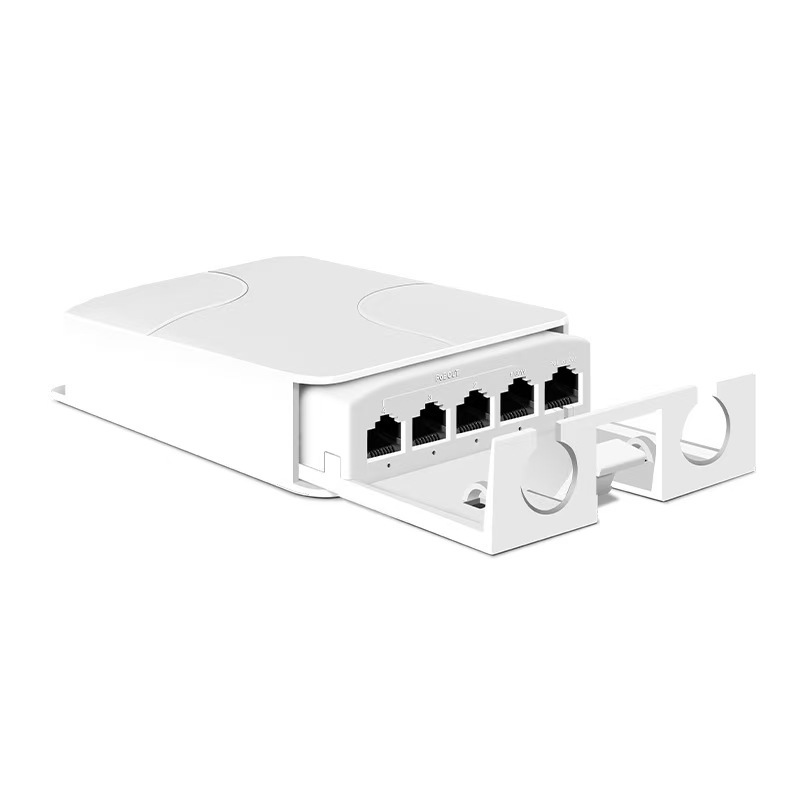

Product photoes:

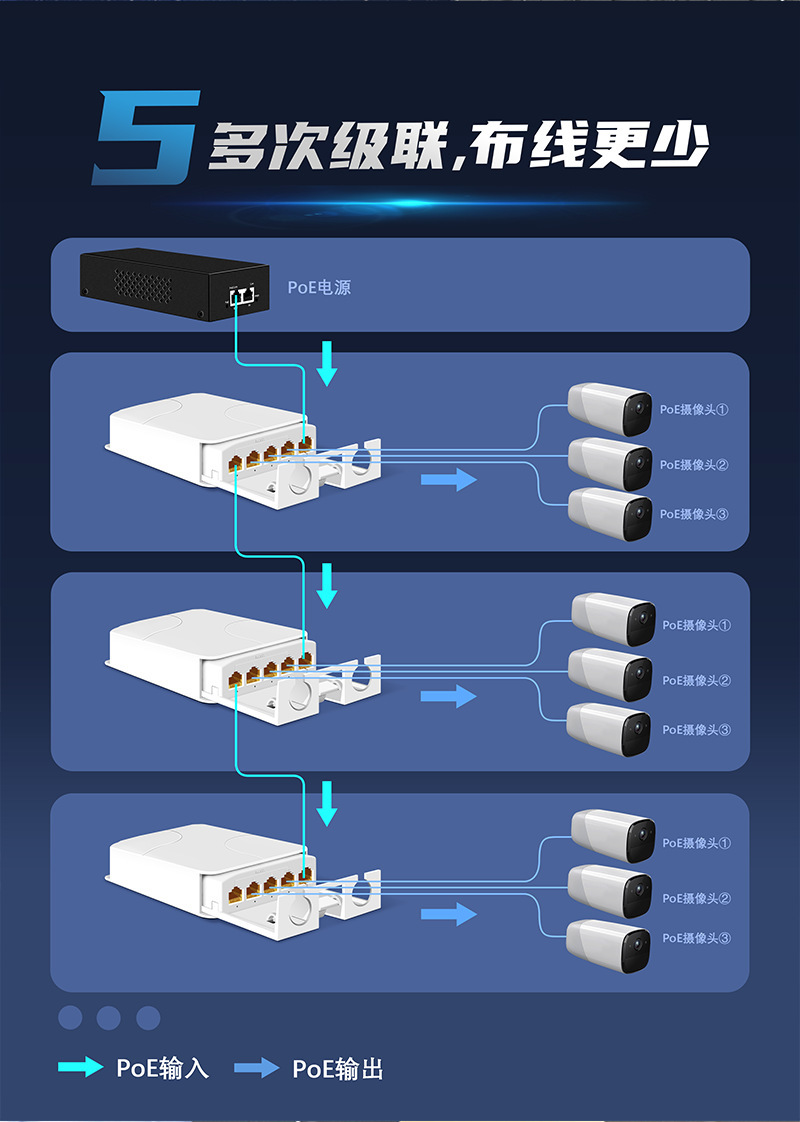

Product Application:
Ordering Models:
| UT-AT13-C | POE Extender 10/100Mbps 1-IN 3-OUT, 100m
POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT, | PCS |
| UT-AT13G-C | POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m
POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT, | PCS |
| UT-BT14-A | POE Extender 10/100Mbps 1-IN 4-OUT,100m
POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max,
IEEE802.3AF/AT, | PCS |
| UT-BT14G-A | POE Extender 10/100/1000Mbps 1-IN 4-OUT,100m
POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max,
IEEE802.3AF/AT, | PCS |
| UT-WAT13-C | Outdoor Waterproof POE Extender 10/100Mbps 1-IN 3-OUT, 100m
POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT, | PCS |
| UT-WAT13G-C | Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m
POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT, | PCS |
| UT-WBT14-A | Outdoor Waterproof POE Extender 10/100Mbps 1-IN 4-OUT,100m
POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max,
IEEE802.3AF/AT, | PCS |
| UT-WBT14G-A | Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 4-OUT,100m
POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max,
IEEE802.3AF/AT, | PCS |
FAQ:
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can
trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls
contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will
make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product
series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause
by human factors, we will fix it.
