50m patch cord cable

Ask Lasest Price
Brand Name :	UTOPTEK
Model Number :	LC/UPC-LC/UPC-OM2-DX-3.0-XM-LSZH
Certification :	CE FCC RoHs
Payment Terms :	L/C, T/T, Western Union,Paypal,Alipay
Supply Ability :	1000K per month
Delivery Time :	1-3working days

Add to Cart

Product Details
Company Profile

Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable

SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized

1. Features

High dense spaces
Ceramic ferrules connectors
Low insertion loss,high return loss
Half the size of standard connector
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
100% Insertion,Return Loss, End face and Interference inspection

2. Applications

Telecommunication
CATV,FTTH,LAN
Fiber optic sensors
Optical transmission system
Test equipment

3. Technical sheet:

Parameter	FC,SC,LC			ST,MU		MTRJ
	SM		MM	SM	MM	SM	MM
	UPC	APC	UPC	UPC	UPC	UPC	UPC
Operating Wavelength(nm)	1310, 1550		850, 1300	1310, 1550	850, 1300	1310, 1550	850, 1300
Insertion Loss(dB)	≤0.2	≤0.3	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
Return Loss(dB)	≥50	≥60	≥35	≥50	≥35	≥50	≥35
Repeatability(dB)	≤0.1
Interchangeability(dB)	≤0.2
Plug times(times)	≥1000
Tensil Strength(N)	≥100
Durability(dB)	≤0.2
Operating temperature(ºC)	-45~+75
Storage temperature(ºC)	-45~+85

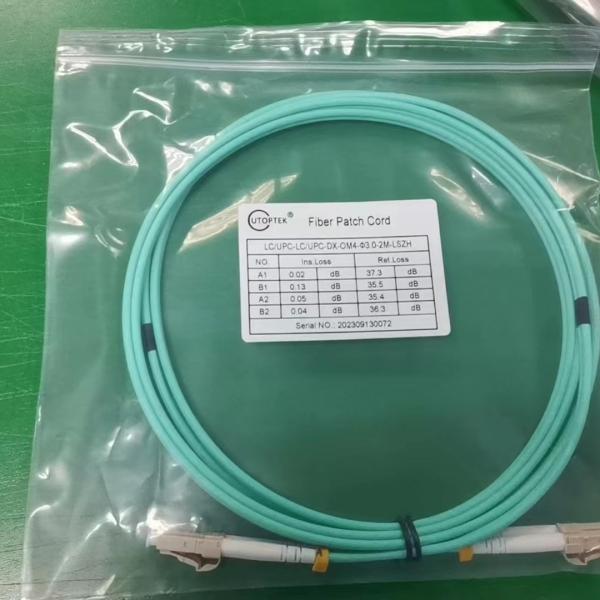

4. Package:

Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable

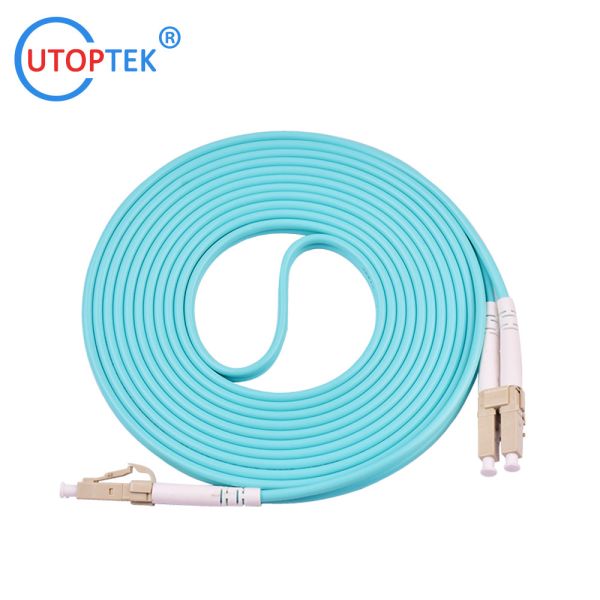

5. Product pictures:

Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
